There are a number of things about these motors that are counter intuitive and this leads. Going on a trip tomorrow and they call for some rain so id like to get it working.
Lucas 2 Speed Windshield
Lucas 2 Speed Windshield And the motor wiring again with color codes.
Lucas 2 speed wiper motor switch wiring diagram. The later wiper switch and motor plug with color codes. Geeson switch general description internally the switch has eight fixed contacts plus one set of contacts between pin four 4 and pin six 6 which are mechanically interrupted by the rotary contact plate. If you use the lucas 35927 switch that was meant for 2 speed operation you could use your wiring as it is now.
Lucas dr3a two speed wiper motors the lucas two speed variant of the dr3a wiper motor as found on triumph tr4a and other vehicles from the same era seem to create problems when people try to wire them up. The lucas 2 speed dr1 wiper motor jaguar xk 140 fhc part with lucas dr3 wiper motor wiring diagram by admin from the thousand photos on the net concerning lucas dr3 wiper motor wiring diagram selects the best libraries along with greatest image resolution simply for you and this photographs is actually one among photographs series in our finest photographs gallery in relation to lucas dr3. Rd8345 lucas dr1 dr2 d3 motors r r silver dawn silver wraith bentley mkvi r type n.

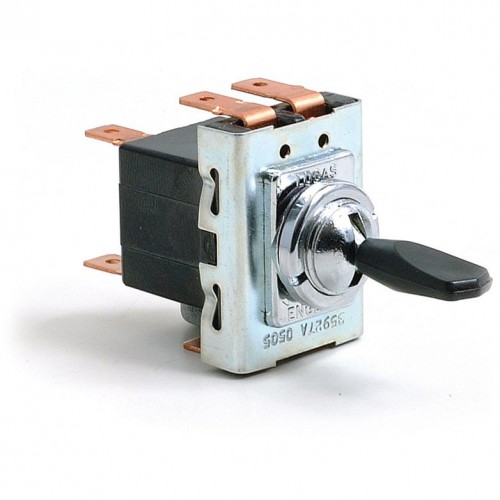

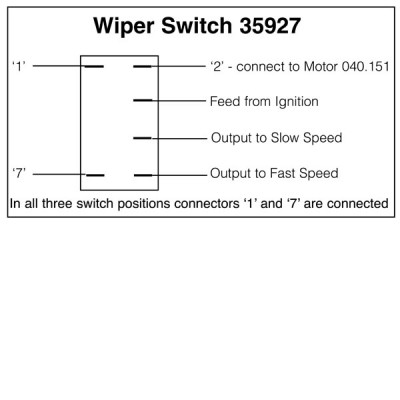

Has anyone installed the speedway 2 speed wiper motor and switch. Relays do not have to be used but if using a switch it is important to use the correct lucas wiper switch part no 35927. Vat austin morris mini triumph morgan mg vauxhall hillman.

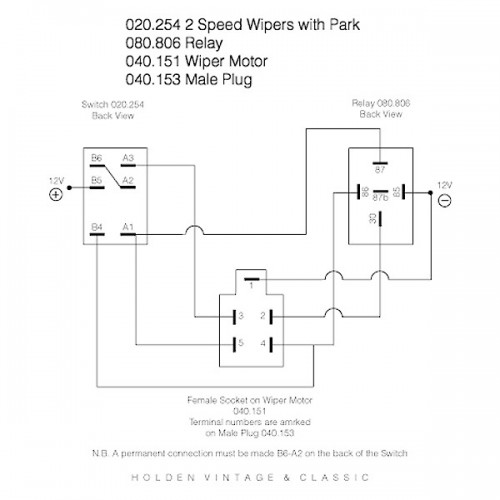

The diagram below shows how to wire up the 2 speed wiper motor using two single pole double throw 5 pin automotive relays. Page 1 of 2 lucas toggle 2 speed wiper switch wires. Kit car replica wiper motor wiring tutorial.
Can anyone help me with wiring my 2 speed wipers to a lucas toggle switchthe switch has terminals marked 1467 8 and i have wire colours lgolgbnlg ulgrlgthe annoying thing is that i had a diagram of how it should go from when i built my cobra but i gave it to the new owner when i sold. Often this happens when someone tries to use one to upgrade from a single speed variant. That would limit you to the single low speed but it would allow for motor parking and would require no effort.
Wiring for the wiper motor has colors to distinguish the specific mode. For high speed you. Universal wiper switch wiring diagram.
If youre having trouble installing the ez wiring universal wiper kit then you need to check out this tech article. The isolating switch used below is a simple 2 pole switch in which both output pins are live in the fast position. The lucas motor stops in the.
This plate carries four 4 contacts and a fibre cam which. Universal 12v timer relay providing a 5 second delay for an intermittent wiper function. 2 speed wiper motor 14w replaces lucas lrw110 4166 4999 inc.
Two speed wiper switch part no. The number of electrical terminals can range from five to 12 slots for low speeds moderate speeds high speed very high speed manual function off mode common terminal and the park switch. Posted in problems questions and technical.
These wirings electrical terminal have the purpose of organizing the configurations for wiper motor speed or mode.
